- 产品特性
- BF-3300(Dual Link DVI- D)，
是专为延长DVI界面和高清数字显示设备之间的连接距离而设计的DVI
中继器。配合BAFO高品质的DVI-D连接线使用。
- BF-3300(Dual Link DVI- D)亦
可与普通DVI连接线配合使用，将DVI信号有效延长至30米。
- 产
品规格
- 接口
- 输入- DVI -D
- 输出- DVI -D
- 电源- DC插口
- 电源消耗：5V
0.5A
- 解像度：UXGA
1600 X 1200
- 视频频宽：最大支持
165MHz
- 外壳：铝质
- 尺寸：69.4 X
43.8 X 16.9mm
- 操作条件：
- 操作温度：0°C -
50°C
- 储存温度：-40°C -
105°C
- HDCP制式兼容
- 包装：
- 彩盒
- BF-3300 X 1
- AC电源
- 用户指南
|
Product
Features

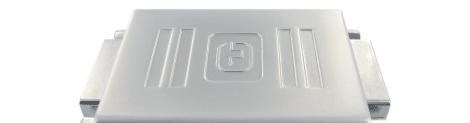

- A set of extending
adapters for the DVI Interface to facilitate the transfer of high
definition digital data over BAFO's high quality DVI-D cables. The
adapters, BF-3300 for Dual Link DVI-D can be used in combination of
existing cables to achieve cable extensions beyond 30 meters.
- Product
Specification:
- Connector:
Input—DVI-D
Output---DVI-D
Power---DC Jack
Power Consumption: 5V 0.5A
Resolution: Supports Resolutions to UXGA (1600x 1200)
Video Bandwidth: Up To 165 MHz Pixel Rates
Physical: Aluminum
Dimension: 69.4*43.8*16.9mm
Environment:
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 105°C
HDCP Encryption Compatible
- Package:
- White box
- Dual link DVI extender
- AC power
- Quick guide
|
